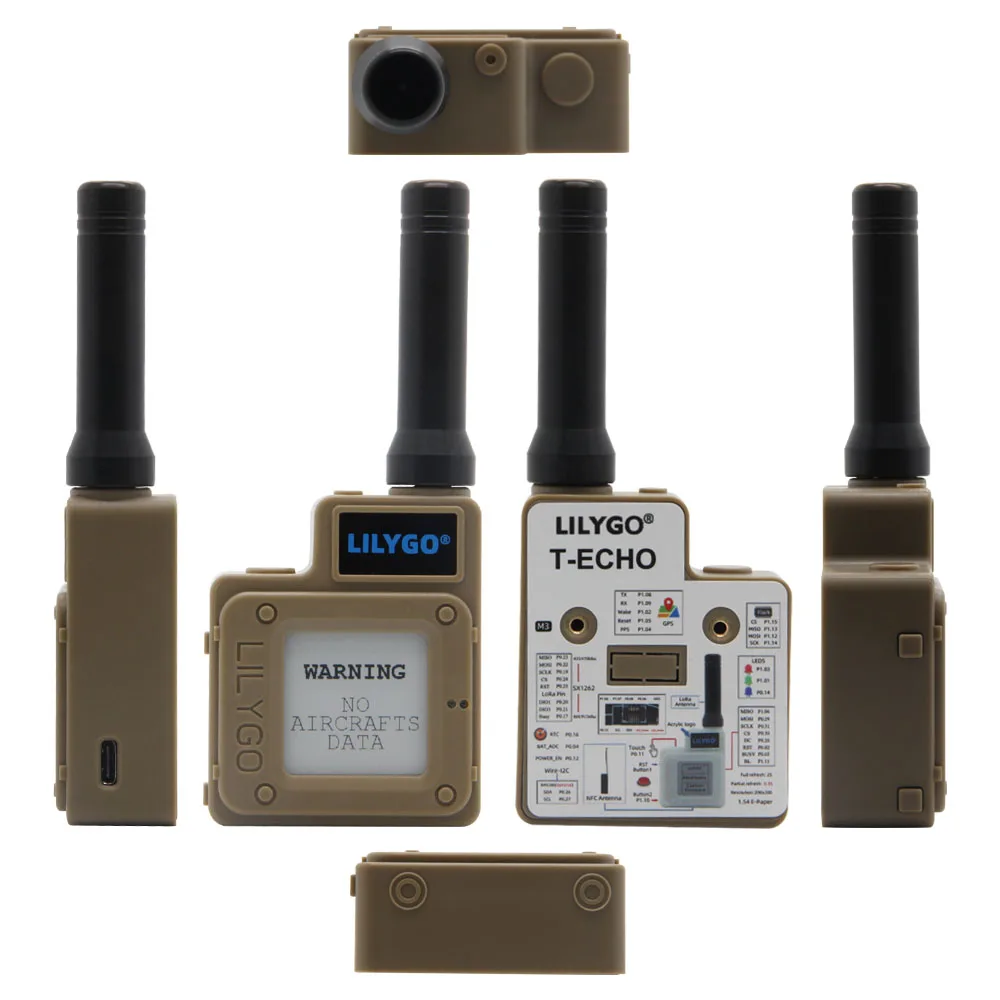

LILYGO TTGO T-Echo NRF52840 LoRa SX1262 (433/868/915MHz) GPS L76K E-Paper BME280 for Arduino
LILYGO TTGO T-Echo NRF52840 LoRa SX1262 (433/868/915MHz) GPS L76K E-Paper BME280 for Arduino
Couldn't load pickup availability

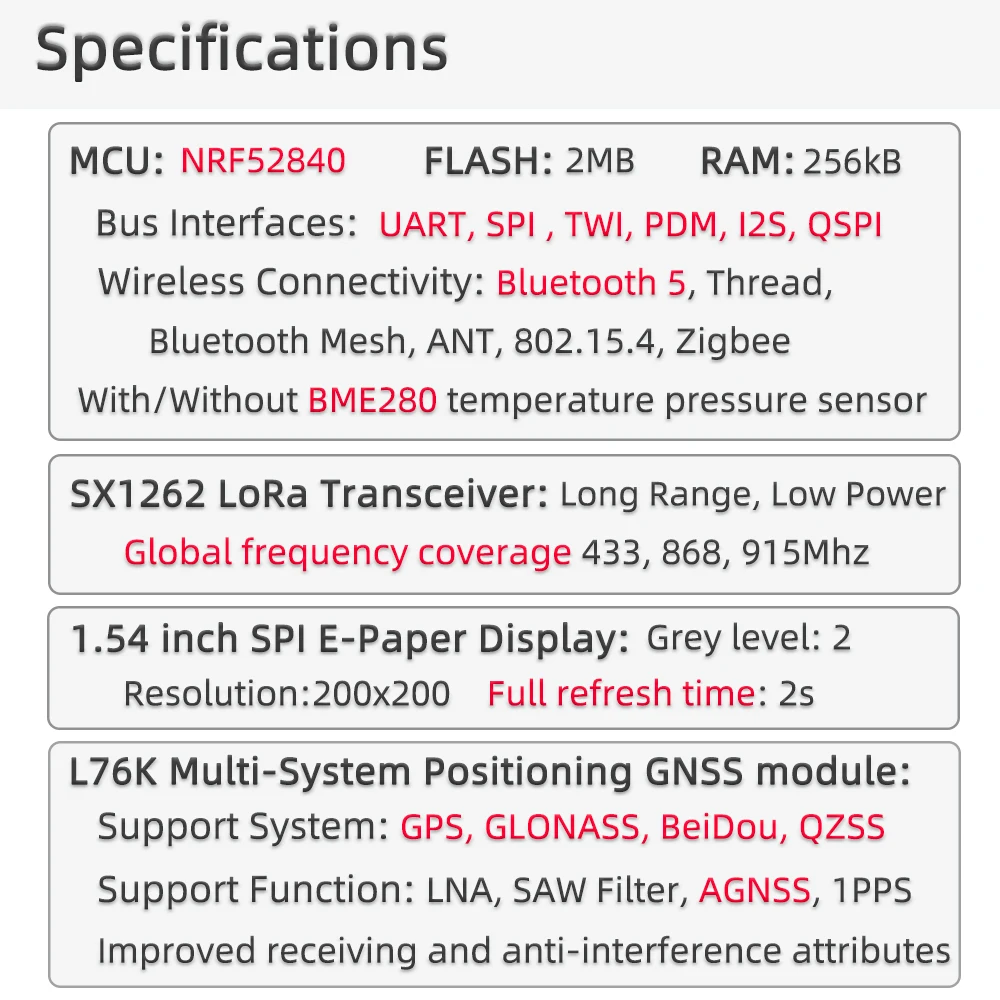

SPECIFICATIONS
Black 433MHz: K169
Black 433MHz BME280 Kit: K170
Black 868MHz: K171
Black 868MHz BME280 Kit: K153
Black 915MHz: K142
Black 915MHz BME280 Kit: K172
Brand Name: lilygo
Brown 433MHz: K177
Brown 433MHz BME280 Kit: K178
Brown 868MHz: K179
Brown 868MHz BME280 Kit: K162
Brown 915MHz: K145
Brown 915MHz BME280 Kit: K180
Category: Wireless Module
Compatible Audio & Video Equipment Style: Digital-to-Analog Converter (DAC),Display Equipment
Display Screen: 1.54 E-Paper
Grey 433MHz: K173
Grey 433MHz BME280 Kit: K174
Grey 868MHz: K175
Grey 868MHz BME280 Kit: K150
Grey 915MHz: K144
Grey 915MHz BME280 Kit: K176
Hign-concerned Chemical: None
LoRa Band: 433MHz / 868MHz / 915MHz
Master Chip: NRF52840
Milky 433MHz: H472-02-A
Milky 433MHz BME280 Kit: H472-02-B
Milky 868MHz: H472-01-A
Milky 868MHz BME280 Kit: H472-01-B
Milky 915MHz: H472-A
Milky 915MHz BME280 Kit: H472-B
Model Number: SoftRF T-Echo
Origin: Mainland China
Package: Yes
Sensor Type: BME280 TEMP Pressure Sensor
Type: Bluetooth
Wireless Chip: LoRa SX1262
T-Echo Meshtastic Collaboration Products:
https://www.aliexpress.com/item/1005003026107533.html
Github :
Basic Example :
https://github.com/Xinyuan-LilyGO/LilyGO-T-Echo
https://github.com/lyusupov/SoftRF/wiki/Badge-Edition

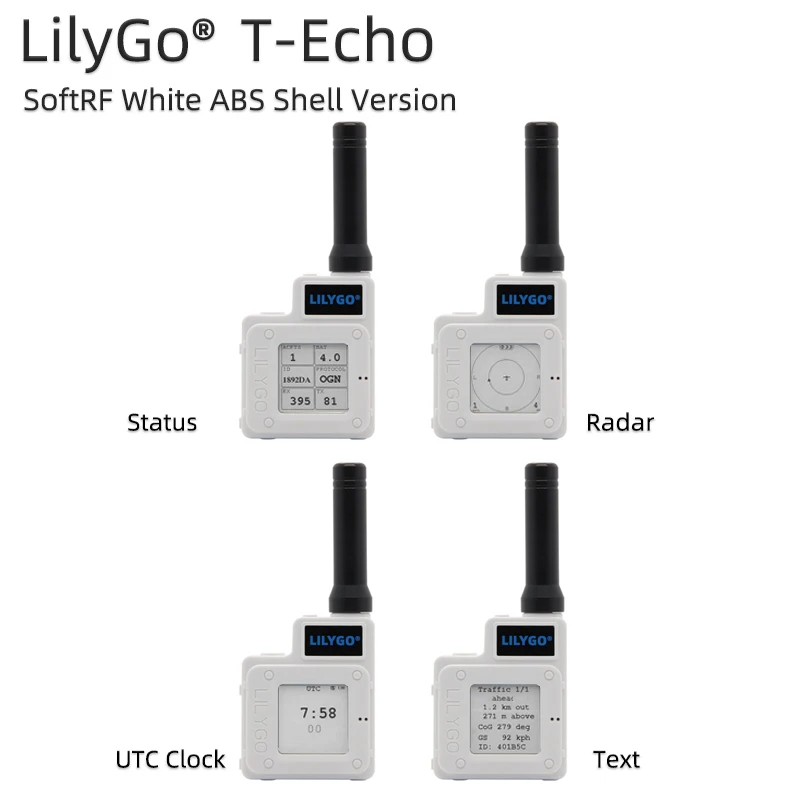

SoftRF:
https://github.com/lyusupov/SoftRF/wiki/SoftRF-Configuration-Tool
Application scenarios:
- DIY creation - LoRa networking - GPS positioning - IOT terminal controlle - Stem education product
Features of the module:
Multi-satellite positioning system L76K is a support multi-satellite system (GPS, BeiDou, GLONASS, QZSS), multi-system joint positioning and single system independent positioning, support AGNSS function, built-in low noise amplifier and surface filter, can provide users GNSS module with fast, accurate and high-performance positioning experience.
Compared with a single GPS system, the high-precision positioning multi-satellite system greatly increases the number of visible and usable satellites, improves positioning accuracy, and can achieve stable high-precision positioning even in complex urban environments.
It supports the AGNSS function, which can greatly Reduce the time for the first positioning, built-in low-noise amplifier, can achieve high sensitivity, high-precision positioning and fast signal capture and tracking, even under weak signal conditions can also ensure a good positioning performance, built-in surface acoustic filter, can greatly The anti-interference ability of the module is enhanced, and the active antenna detection circuit and protection circuit are integrated inside to protect the module and the active antenna from damage.

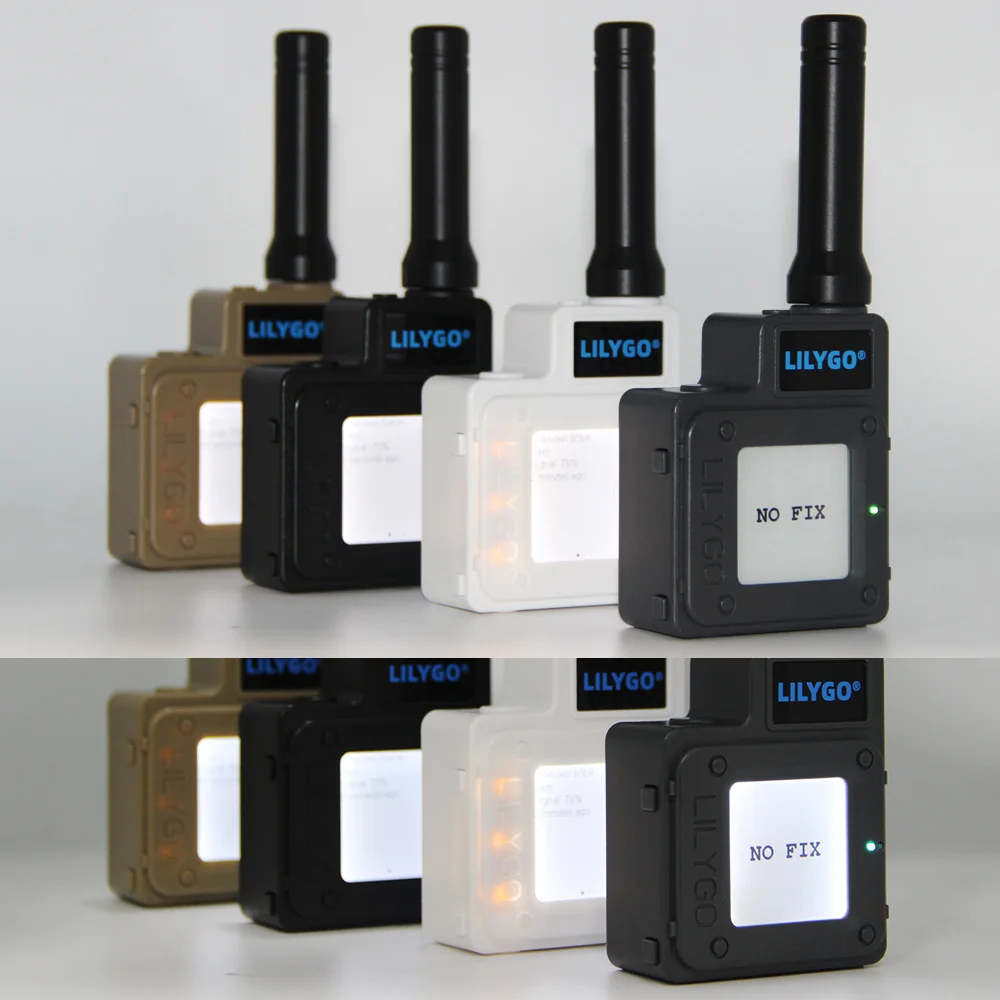

The display uses a 1.54-inch electronic paper display with front light, 200x200 resolution 1.54 front LED E-paper, and it can be used in a dark environment.

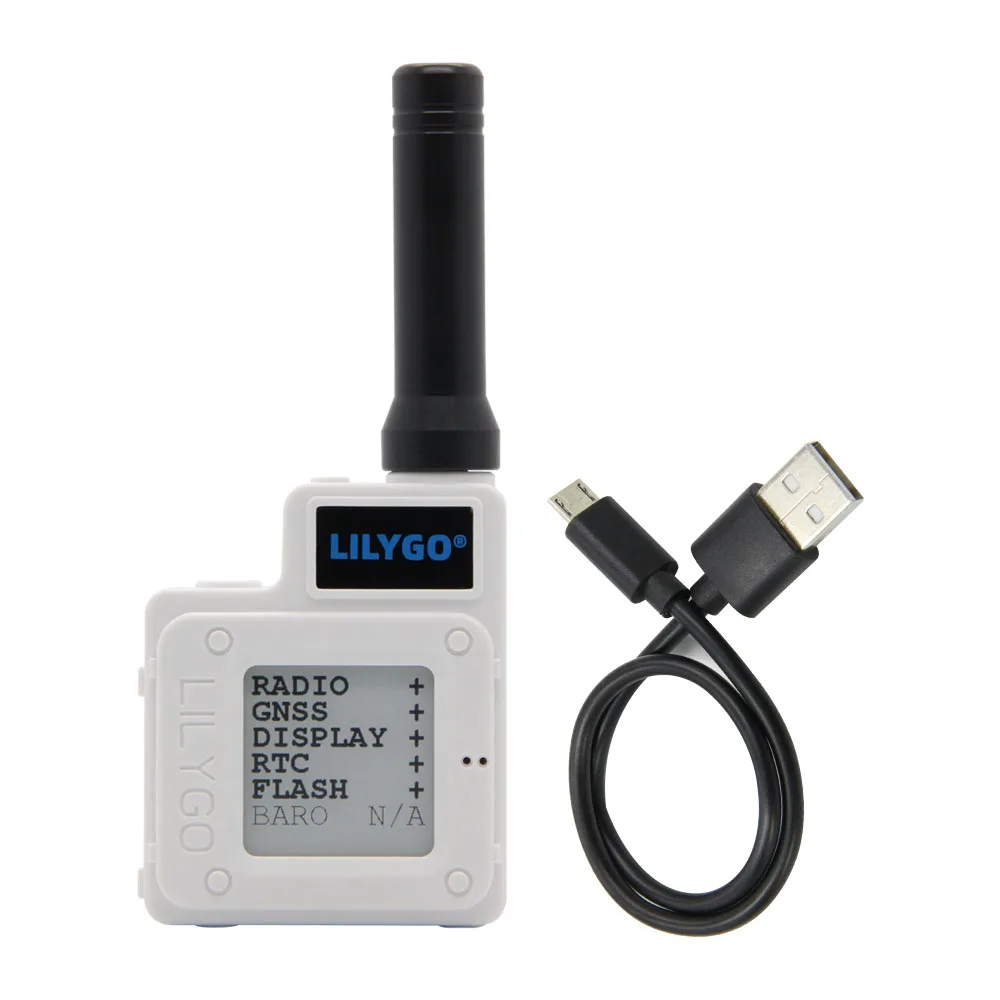

T-Echo 433/868/915MHz Kit Options
1 X T-ECHO Motherboard
1 X GPS Antenna
1 X LORA 915/868/433MHz Antenna
1 X NFC Antenna
1 X Touch Cable
1 X Jst 2pin1.25mm Battery Cable
1 X TYPE-C USB Cable
1 X 850mA Capacity Battery
1 X ABS Material Enclosure White

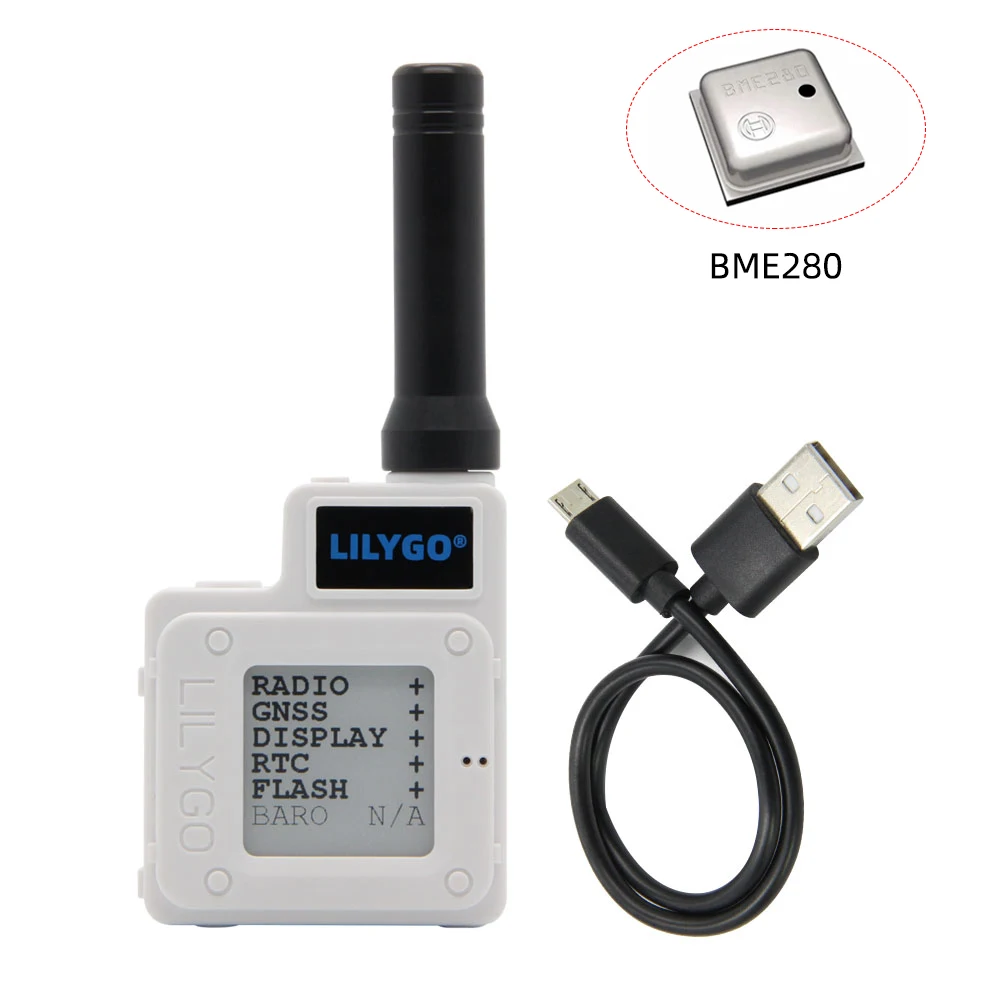

T-Echo 433/868/915MHz BME280 Kit Options
1 X T-ECHO BME280 Motherboard
1 X GPS Antenna
1 X LORA 433/868/915MHz Antenna
1 X NFC Antenna
1 X Touch Cable
1 X Jst 2pin1.25mm Battery Cable
1 X TYPE-C USB Cable
1 X 850mA Capacity Battery
1 X ABS Material Enclosure White

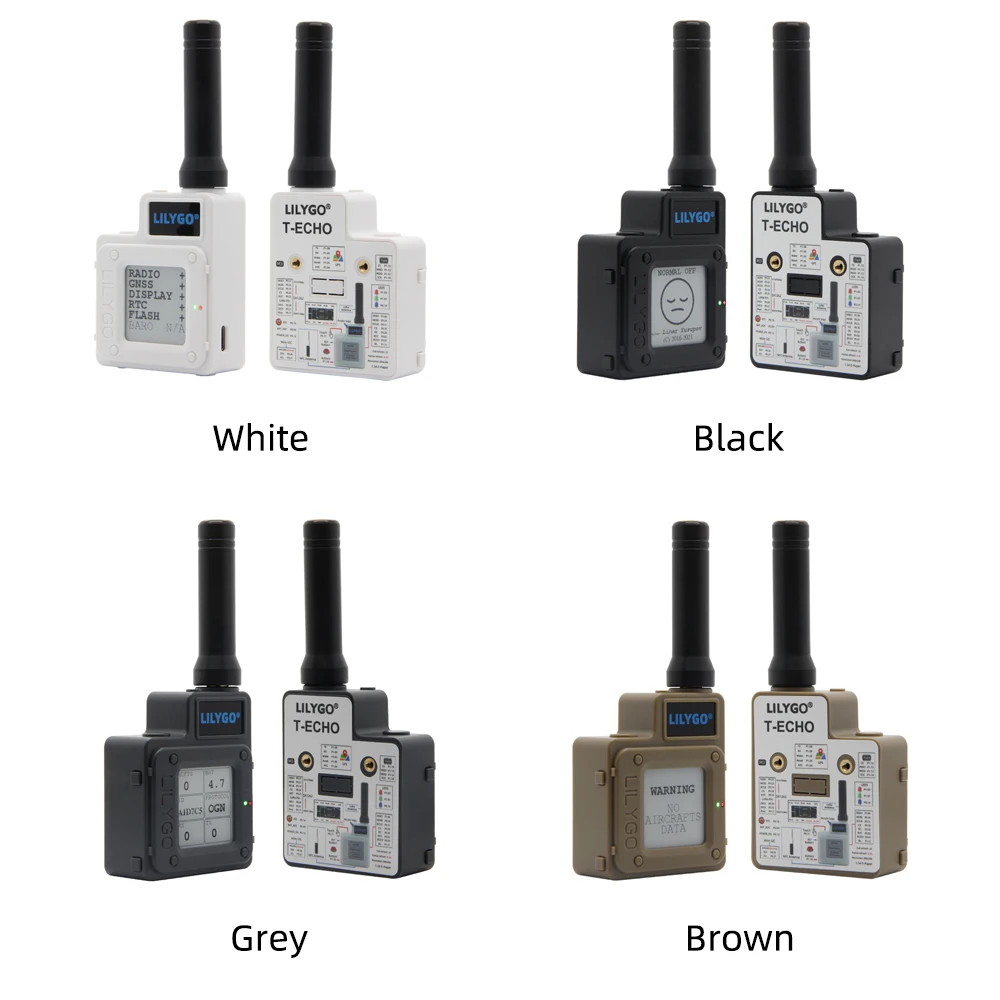

T-Echo 915MHz Kit White/Black/Grey/Brown Options
1 X T-ECHO Motherboard
1 X GPS Antenna
1 X LORA 915MHz Antenna
1 X NFC Antenna
1 X Touch Cable
1 X Jst 2pin1.25mm Battery Cable
1 X TYPE-C USB Cable
1 X 850mA Capacity Battery
1 X ABS Material Enclosure White/Black/Grey/Brown
